Sambungan flanged
Model: DIF
Penerangan ：
- Jenis skru atau jenis kimpalan boleh dipilih mengikut keperluan saiz
- Digunakan untuk kumbahan atau cecair dengan sifat sukar seperti menghakis, suhu tinggi, atau penghabluran
- Berkenaan untuk persekitaran kerja yang ketat termasuk pemprosesan farmaseutikal, kimia dan petrokimia, dll.
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Baca lebih lanjut: Sekiranya meterai diafragma diintegrasikan ke tolok tekanan anda?
Muat turun fail
Spesifikasi produk
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Jenis | Dikimpal, diskru |
|---|---|
| Jenis Sambungan Proses | ANSI/ ASME B16.5, JIS, DIN2527 |
| Diameter nominal | Welded: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" Screwed: 2", 3", 4" |
| Sambungan instrumen | 1/4, 3/8, 1/2 Pt, g, npt, m |
| Skala skala dikimpal | Pressure gauge: 1/2", 3/4": 0 ... 4 bar to 0 ... 40bar 1", 1 1/4": -1 ... 3 bar, 0 ... 2.5 bar to 0 ... 40 bar 1 1/2", 2": -1 ... 1.5 bar 0 ... 1.6 bar to 0 ... 40 bar Transmitter: 1/2", 3/4": 0 ... 0.3 bar to 0 ... 40bar 1", 1 1/4": -1 ... 0.6 bar, 0 ... 0.25 bar to 0 ... 40 bar 1 1/2", 2": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 40 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Julat skala - kacau |
Pressure gauge: -1 ... 1.5 bar, 0 ... 0.6 bar to 0 ... 40 bar Transmitter: -1 ... 0.6 bar, 0 ... 0.25 bar to 0 ... 40 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Bahan | Body: 304 SS, 316 SS, 316L SS, Hastelloy C276, Dual phase steel, Tantalum, Monel 400, Titanium, Nickel 200 Diaphragm - welded: 316L SS, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 Diaphragm - screwed: 316L SS, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200, Silicone, Viton, 316L+PTFE, 316L+PTFE Coating, PTFE |
| Suhu sederhana | 0 ° C ... 80 ° C, 81 ° C ... 200 ° C, 201 ° C ... 400 ° C |
| Yang lain | Welded with instrument, flush port, coating (PTFE, PFA), lining (metal or PTFE), capillary with handling tube, cooling element |
Paparan produk
Imej produk sebenar
Pressure transmitter with flange connection, diaphragm seal

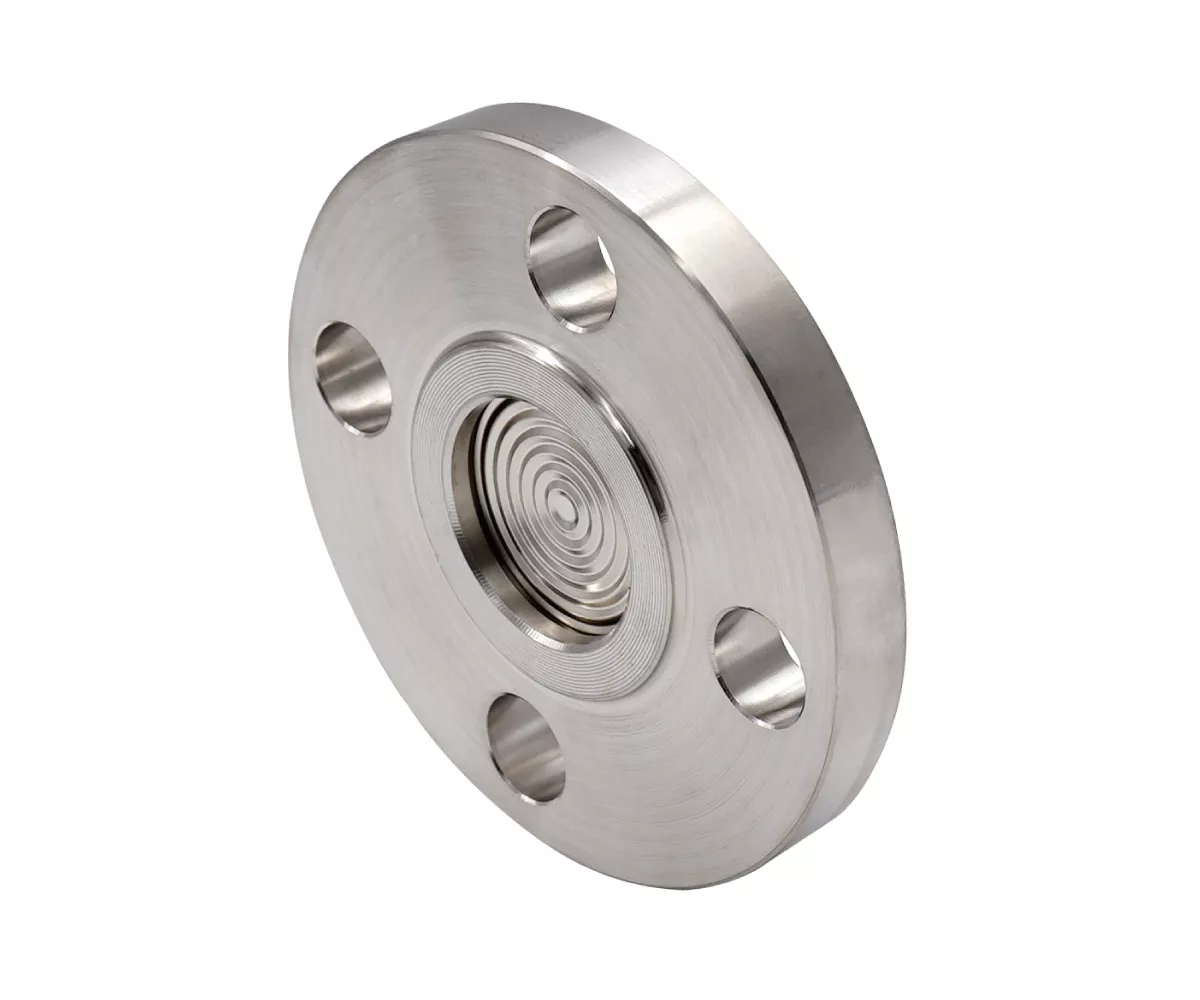

Meterai diafragma sambungan flanged
Tolok sambungan flanged
