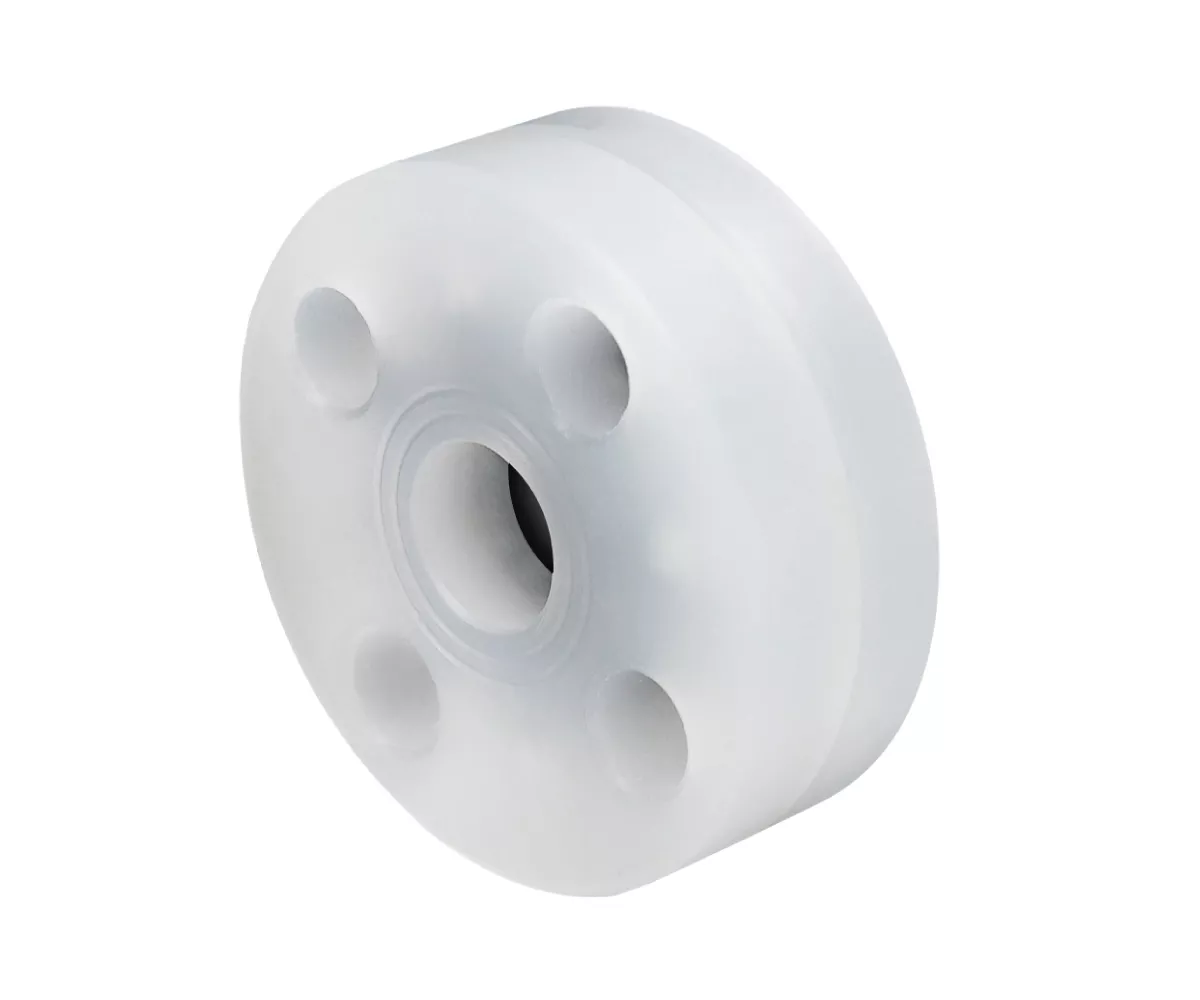

Sambungan yang berlainan dengan plastik tahan kakisan
Model: DIF-P
Penerangan ：
- The all-plastic material design is lightweight and can effectively measure acidic and alkaline media
- Excellent for paint, electroplating, sewage treatment and the paper industry
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Baca lebih lanjut: Sekiranya meterai diafragma diintegrasikan ke tolok tekanan anda?
Muat turun fail
Spesifikasi produk
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Jenis Sambungan Proses | ANSI/ ASME B16.5, JIS, DIN2527 |
|---|---|
| Diameter nominal | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 3", 4" |
| Sambungan instrumen | 1/4, 3/8, 1/2 Pt, g, npt, m |
| Scale ranges - metal diaphragm | Pressure gauge: 1/2"、3/4"：0 ... 4 bar to 0 ... 10 bar 1" ... 1 1/4": -1 ... 3 bar、0 ... 1.6 bar to 0 ... 10 bar 2": -1 ... 1.5 bar、0 ... 0.6 bar to 0 ... 10 bar 3"、4"：-1 ... 0.6 bar、0 ... 0.6 bar to 0 ... 10 bar Transmitter: 1/2"、3/4"：0 ... 0.4 bar to 0 ... 10 bar 1" ... 1 1/4": -1 ... 0.6 bar、0 ... 0.25 bar to 0 ... 10 bar 2": -1 ... 0.6 bar、0 ... 0.1 bar to 0 ... 10 bar 3"、4"：-1 ... 0.05 bar、0 ... 0.05 bar to 0 ... 10 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Julat skala - diafragma PTFE |
Pressure gauge: 1/2"、3/4"：-1 ... 5 bar、0 ... 2.5 bar to 0 ... 10 bar 1" ... 1 1/4": -1 ... 1.5 bar、0 ... 1.6 bar to 0 ... 10 bar 2": -1 ... 0.6 bar、0 ... 0.6 bar to 0 ... 10 bar 3"、4"：-1 ... 0.6 bar、0 ... 0.1 bar to 0 ... 10 bar Transmitter: 1/2"、3/4"：-1 ... 3 bar、0 ... 0.4 bar to 0 ... 10 bar 1"...1 1/4": -1 ... 0.6 bar、0 ... 0.1 bar to 0 ... 10 bar 2": -0.05 ... 0.05 bar to 0 ... 10 bar 3"、4"：-0.05 ... 0.05 bar to 0 ... 10 bar |
| Bahan | Upper body: PP, PVC, PVDF, PTFE Lower body: PP, PVC, PVDF, PTFE Diaphragm: PTFE, Hastelloy C276, Titanium, Tantalum, Monel 400, Nickel 200, Silicone, Viton, 316L+PTFE, 316L+PTFE Coating |
| Suhu sederhana | 0℃ ... 60℃ (PVC), 0℃ ... 80℃ (PP), -40℃ ... 120℃ (PVDF), -200℃ ... 240℃ (PTFE) |

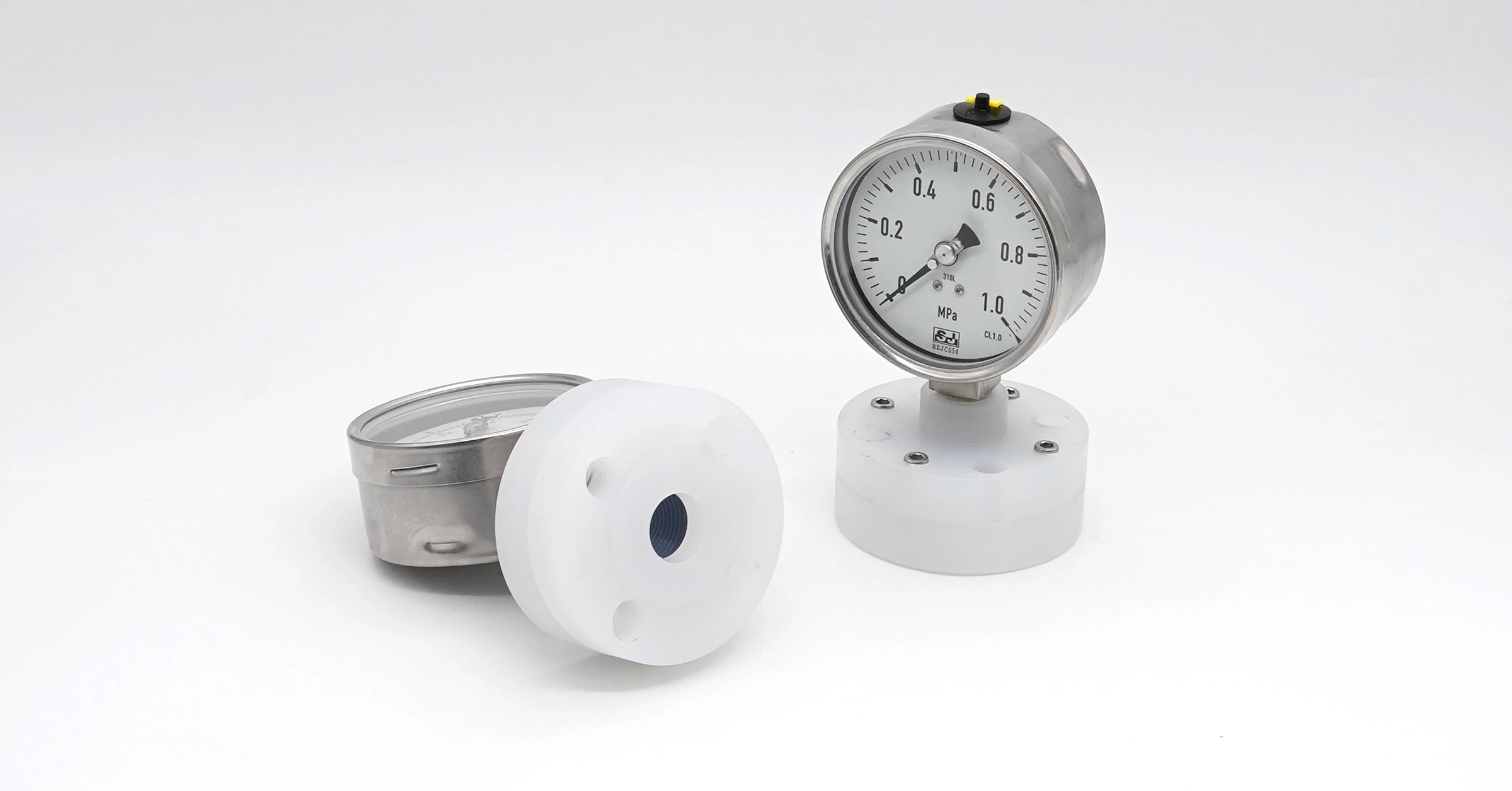

Paparan produk
