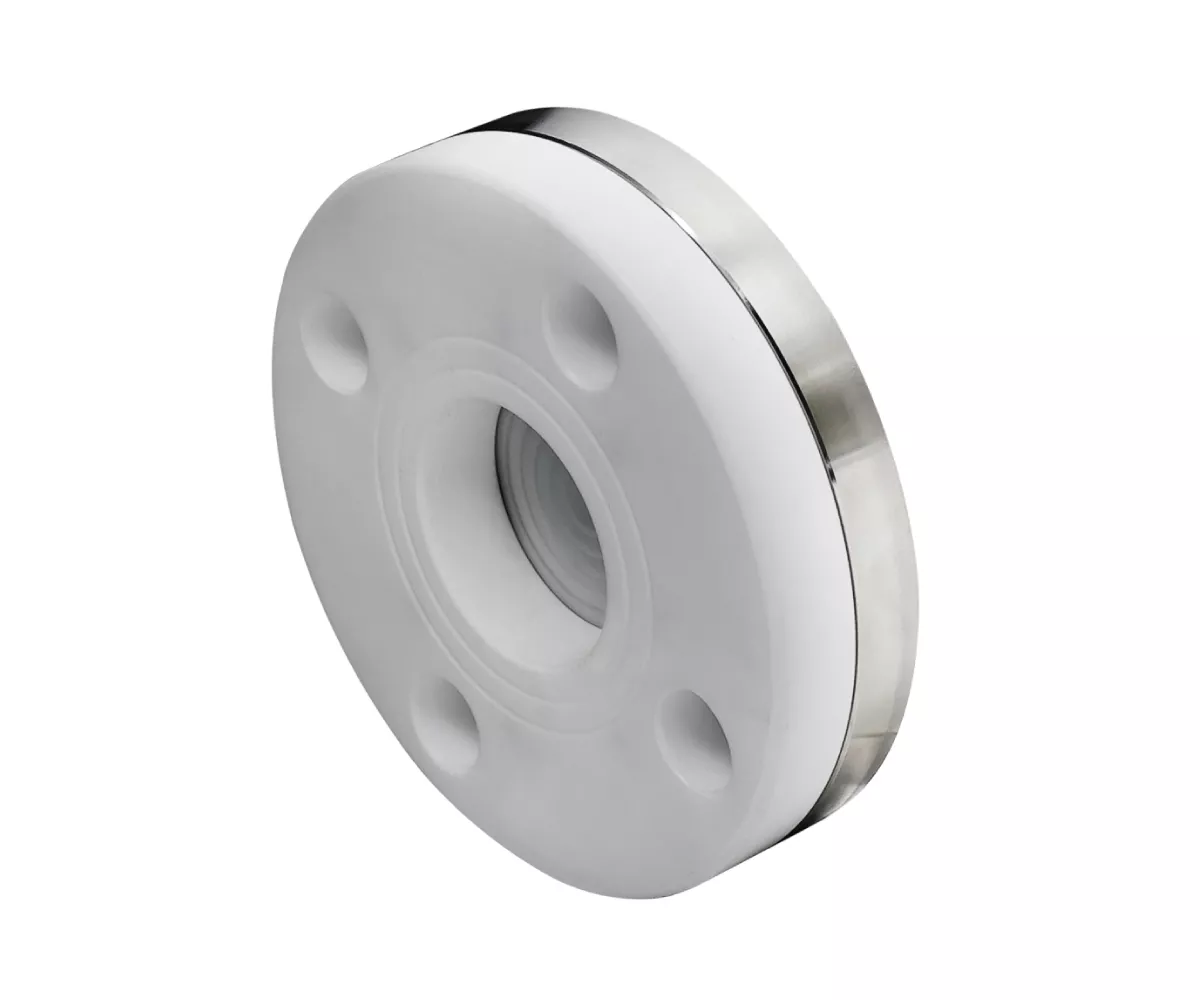

Sambungan flanged, logam atas, plastik bawah
Model: DIF-USLP
Penerangan ：
- Badan atas logam yang menghubungkan ke instrumen adalah ketat dan tahan lama
- Badan bawah plastik dapat melindungi instrumen tekanan dari media yang menghakis, tercemar atau likat
- Sesuai untuk cat, elektroplating, rawatan kumbahan dan industri kertas
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Baca lebih lanjut: Sekiranya meterai diafragma diintegrasikan ke tolok tekanan anda?
Muat turun fail
產品規格
※For detailed specifications or operating instructions, please refer to the“Download file” section above.| Jenis Sambungan Proses | ANSI/ASME B16.5, JIS, DIN 2527 |
|---|---|
| Diameter nominal | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 3", 4" |
| Sambungan instrumen | 1/4, 3/8, 1/2 Pt, g, npt, m |
| Scale ranges - metal diaphragm | Pressure gauge: 1/2", 3/4": 0 ... 4 bar to 0 ... 25 bar 1" ... 1/4": -1 ... 3 bar, 0 ... 1.6 bar to 0 ... 25 bar 2": -1 ... 1.5 bar, 0 ... 0.6 bar to 0 ... 25 bar 3", 4": -1 ... 0.6 bar, 0 ... 0.6 bar to 0 ... 25 bar Transmitter: 1/2", 3/4": 0 ... 0.4 bar to 0 ... 25 bar 1" ... 1 1/4": -1 ... 0.6 bar, 0 ... 0.25 bar to 0 ... 25 bar 2": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar 3", 4": -0.05 ... 0.05 bar to 0 ... 25 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Scale ranges - PTFE diaphragm | Pressure gauge: 1/2", 3/4": -1 ... 5 bar, 0 ... 2.5 bar to 0 ... 25 bar 1" ... 1 1/4": -1 ... 1.5 bar, 0 ... 1.6 bar to 0 ... 25 bar 2": -1 ... 0.6 bar, 0 ... 0.6 bar to 0 ... 25 bar 3", 4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar Transmitter: 1/2", 3/4": -1 ... 3 bar, 0 ... 0.4 bar to 0 ... 25 bar 1" ... 1 1/4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar 2": -0.05 ... 0.05 bar to 0 ... 25 bar 3", 4": -0.05 ... 0.05 bar to 0 ... 25 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Bahan | Upper body: 304 SS, 316 SS, 316L SS, Duplex SS, Hastelloy Alloy, Tantalum, Titanium, Monel 400 Alloy, Nickel 200 Lower body: PP, PVC, PVDF, PTFE Diaphragm: PTFE, Hastelloy Alloy, Titanium, Tantalum, Monel 400 Alloy, Nickel 200, Silicone, Viton®, 316L+PTFE, 316L+PTFE Coating |
| Suhu sederhana | 0℃ ... 60℃ (PVC), 0℃ ... 80℃ (PP), -40℃ ... 120℃ (PVDF), -200℃ ... 240℃ (PTFE) |
| Yang lain | Welded with instrument, capillary with handling tube |
