Tolok tekanan keluli tahan karat, kimpalan laser
Model: PRDR.W
Penerangan ：
- Integrally formed without any seams to avoid leakage effectively
- Vent valve and blow-out device (plug) for improved safety
- Used in the petrochemical industry, power engineering, and sewage treatment
- Same specifications as WIKA-232.50/233.50
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Produk akan disesuaikan dengan keperluan anda, jadi imej produk adalah untuk rujukan.
- Baca lebih lanjut: 7 langkah untuk memilih tolok tekanan
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Lokasi sambungan | Bottom mount, back mount, with/without flange |
|---|---|
| Saiz nominal | 2.5", 4", 6" |
| Julat skala | 0 ... 0.6 kg/cm² to 1600kg/cm², or other equivalent units of pressure, vacuum or compound |
| Ketepatan | 2.5": ±1.6% F.S. 4", 6": ±1.0% F.S. |
| Sambungan proses | 316L SS 1/4, 3/8, 1/2 PT, G, NPT, M |
| Kes | 304 SS, 316 SS With blow-out device at case circumference (4”, 6”) |
| Tetingkap | Kaca keselamatan |
| Dail | Aloi aluminium, skala hitam putih |
| Penunjuk | Black aluminum alloy 2.5": normal 4", 6": adjustable |
| Pergerakan | 304 ss |
| Mengisi cecair | Tanpa, gliserin, minyak silikon |
| Suhu ambien | -40℃ ... 60℃ (non-liquid-filled) -20℃ ... 60℃ (liquid-filled) |
| Suhu sederhana | ≤200 ℃ (bukan cecair penuh) ≤100 ℃ (penuh cecair) |
| Penilaian IP | IP65 |
| Aksesori (pilihan) | 4", 6": drag pointer 4": adjustable set pointer |
Paparan produk
Imej produk sebenar

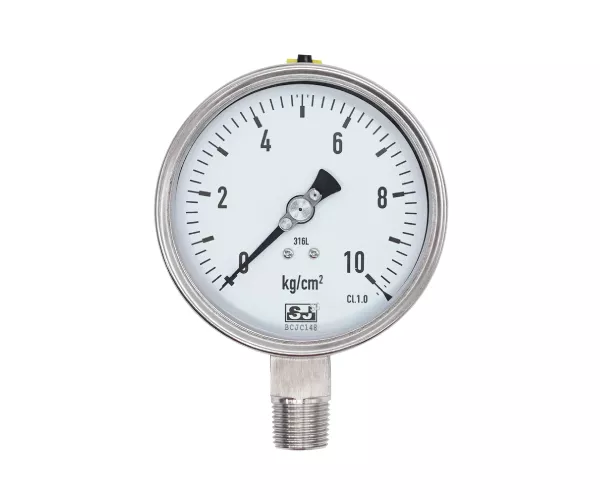

Stainless steel pressure gauge 5"

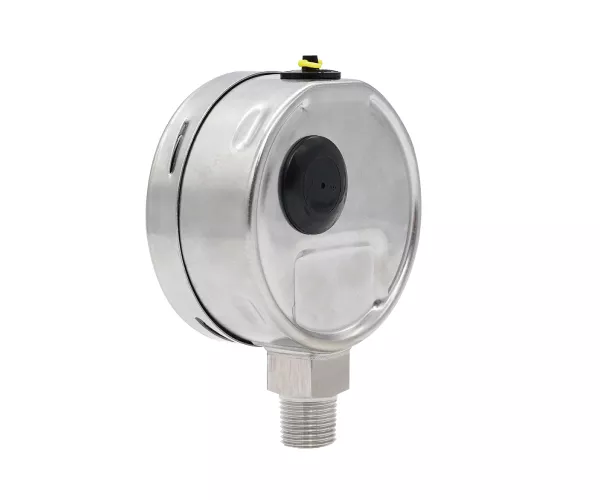

Stainless steel pressure gauge with vent device
Stainless steel pressure instrument
