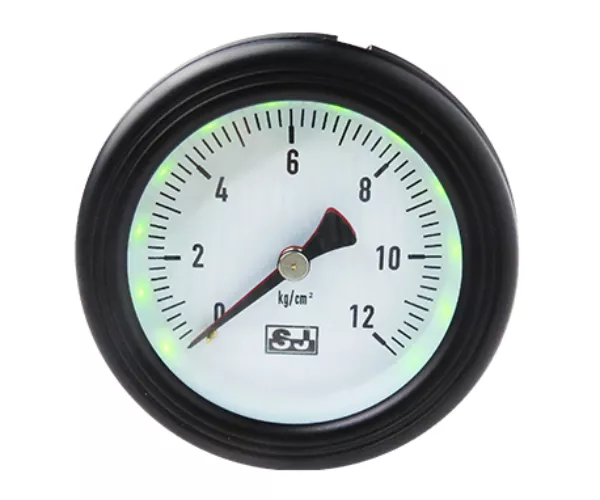

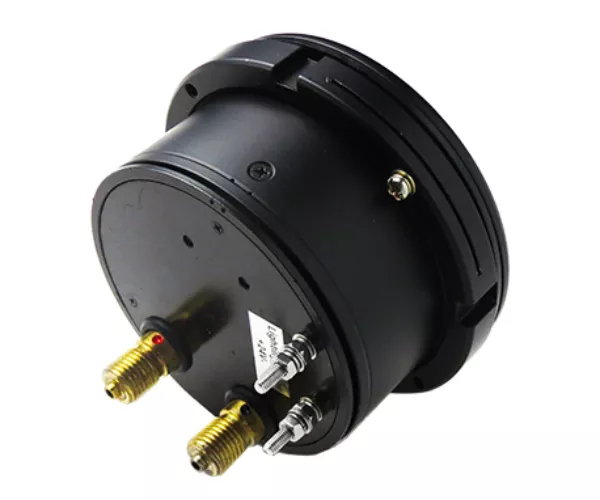

Tolok tekanan perbezaan, dupleks
Model:PRDD
Penerangan ：
- The pressure gauges are equipped with two independently working bourdon tube measuring systems
- LED lighting for operating voltages of DC24V or AC110V
- Typically used in filters and rail braking systems
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Produk akan disesuaikan dengan keperluan anda, jadi imej produk adalah untuk rujukan.
- Baca lebih lanjut: 7 langkah untuk memilih tolok tekanan
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Lokasi sambungan | Lower back mount |
|---|---|
| Saiz nominal | 4" |
| Julat skala | 0 ... 25bar, or other equivalent units of pressure, vacuum or compound |
| Ketepatan | ±1.6% F.S. |
| Sambungan proses | M14 x 1.5 |
| Kes/cincin | Carbon steel |
| Tetingkap | Kaca |
| Dail | Aluminum, white, black lettering |
| Penunjuk | Aluminum, black and red |
| Pergerakan | Aloi tembaga |
| Bourdon Tube | Aloi tembaga |
| Suhu ambien | -29℃ ... 93℃ |
| Suhu sederhana | -30℃ ... 70℃ |
| Lighting power supply | DC24V, AC110V |
