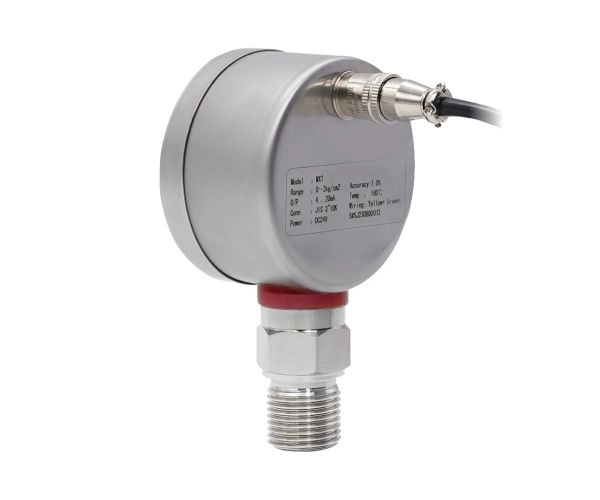

Digital Pressure Gauge, Display and Output Signal
Model: MXT
Penerangan ：
- 4-20mA signal output for remote monitoring
- Digital display which allows local observation at the same time
- LED digital panel with high brightness and a wide viewing angle
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Produk akan disesuaikan dengan keperluan anda, jadi imej produk adalah untuk rujukan.
- Baca lebih lanjut: 7 langkah untuk memilih tolok tekanan
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Lokasi sambungan | Gunung bawah |
|---|---|
| Electrical connection | 2P aviation plug |
| Saiz nominal | 2.5" |
| Julat skala | 0 ... 5 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound |
| Unit tekanan | The unit can be specified before shipment. If unit conversion is required, it must be reset at the factory. |
| Ketepatan | ±1.0% F.S., ±0.5% F.S., ±0.25% F.S |
| Sambungan proses | 304 SS, 316 SS 1/4, 3/8, 1/2 PT, G, NPT |
| Kes/cincin | 304 ss |
| Panel | PVC |
| Suhu sederhana | -20℃ ... 60℃ |
| Paparan | 4 digits |
| Masa tindak balas | ≥ 5 Hz |
| Data acquisition rate | 30 Hz |
| Bekalan voltan | DC16-32V |
| Isyarat output | 4-20mA |
| Protection level | IP 40 |
Paparan produk
Imej produk sebenar
Pressure transmitter with diaphragm seal, cooling element
Pressure transmitter with diaphragm seal, flange connection
