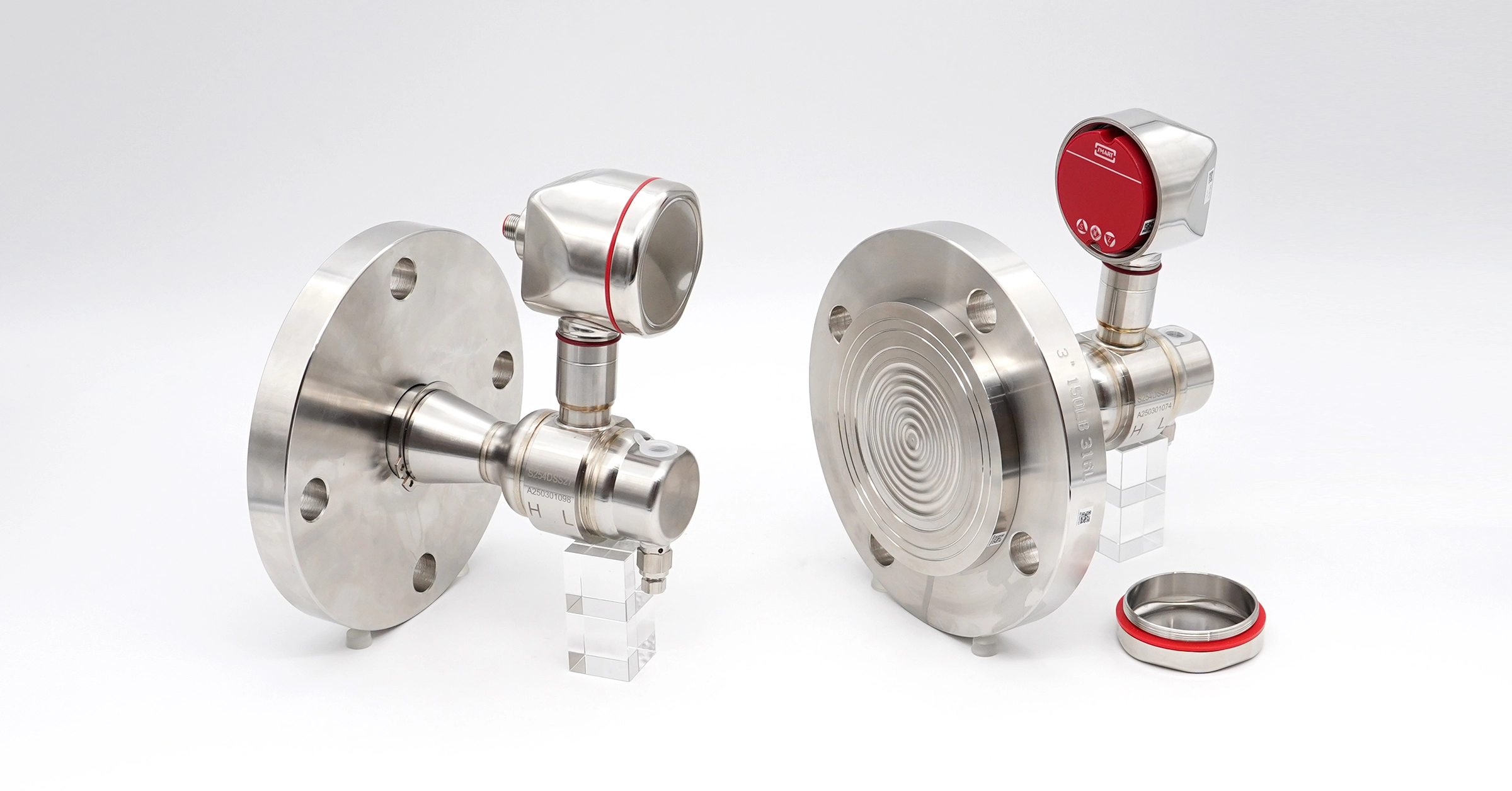

Pemancar tekanan diafragma pintar dengan pembinaan kimpalan
Model: MSSMP858-NST
Penerangan ：
- High-stability pressure sensor
- Originally patented fully sealed, fully isolated the pressure sensor element
- Dual diaphragm overload structure can easily cope with high overload tests
- Accurate filling fluid technology, eliminates the effects of temperature and static pressure
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Read more: How to Distinguish Gauge Pressure and Absolute Pressure?
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Julat skala | 10 kPa ... 1 MPa |
|---|---|
| Isyarat output | 4-20mA, 4-20mA/HART Modbus-RTU/RS485 |
| Ketepatan | ± 0.2% URL (standard), ± 0.5% URL |
| Suhu sederhana | -40℃ ... 85℃, integrated LCD display -20℃ ... 70℃ |
| Penilaian IP | IP 67 |
| Diafragma | SUS 316L, Hastelloy C |
| Stability | ±0.2% URL/ 5 years |
| Sambungan proses | DN50PN10, DN80PN10, DN100PN10 |
| Kelulusan | CSA, IECEx, NEPSI, RoHS, CE |
