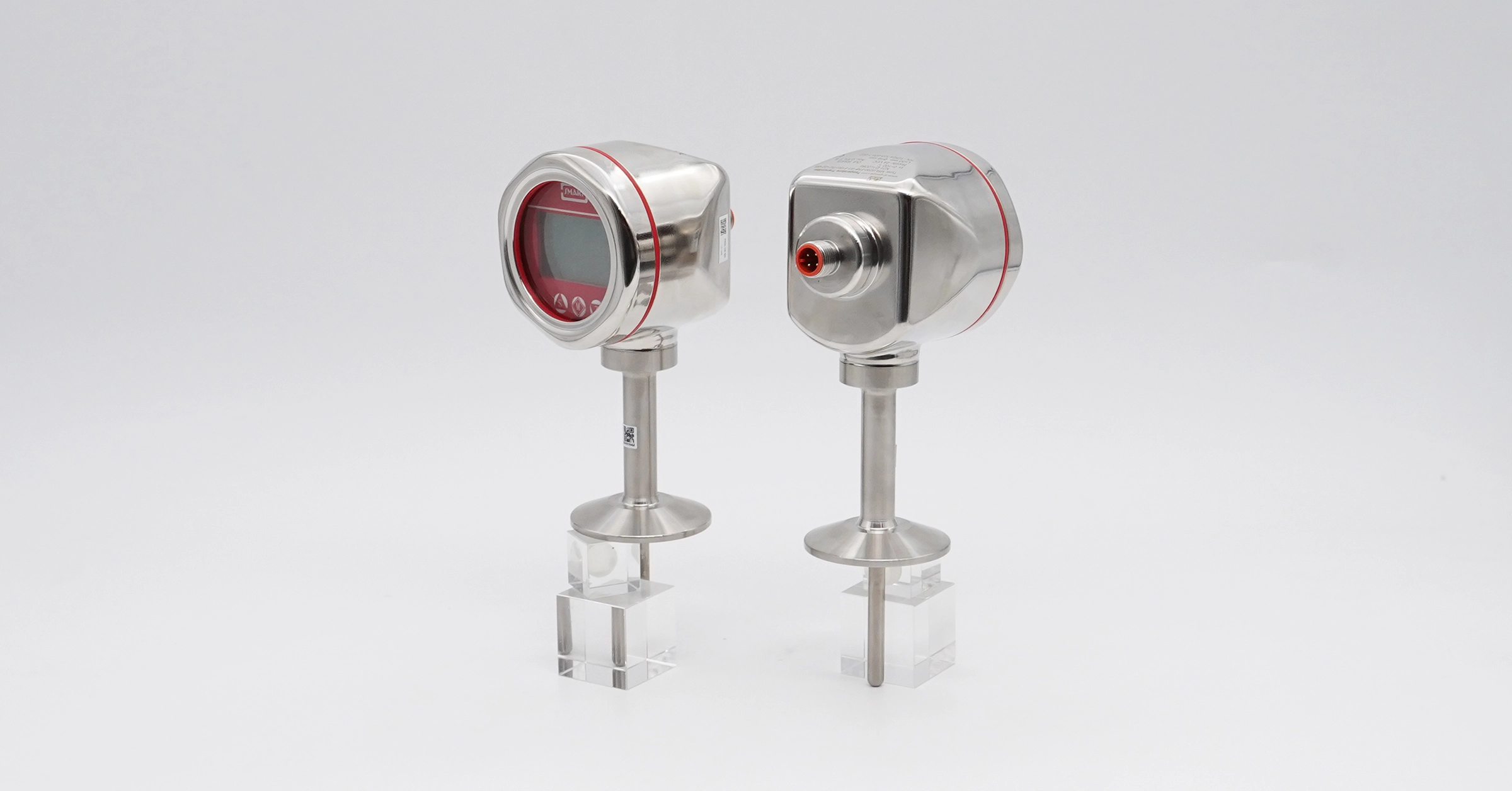

Temperature Transmitter with Stainless Steel Case
Model: MSLG200-FRF
Penerangan ：
- Using stainless steel case and adopting ASIC & SMT signal transmitting modules
- Designed for the food and pharmaceutical industry, ideal for CIP/SIP cleaning and sterilization
- Suitable for bad surge voltage occasions
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Read more: How to Distinguish Gauge Pressure and Absolute Pressure?
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Julat skala | -50℃ ... 400℃ |
|---|---|
| Isyarat output | 4-20mA |
| Ketepatan | ±0.5% URL |
| Stability | ±0.05% URL or 0.1℃/year |
| Sambungan elektrik | Stainless steel terminal, circular connector, M12 x 1, 4 pin, IP 67, vertical mounting Stainless steel terminal, circular connector, M12 x 1, 4 pin, IP 67, horizontal mounting |
| Diameter | 6mm, 8mm, 10mm, 12mm, 14mm |
| Sambungan proses | M20*1.5 (M) , G1/2 (M) , 1/2 NPT Tri-Clamp 1 1/2", Tri-Clamp 2" |
| Kelulusan | CE, 3-A |
