Manifold injap untuk alat tekanan
Model:MSFZ20~50
Penerangan ：
- Divided into 2-valve manifolds, 3-valve manifolds, and 5-valve manifolds based on the applications
- Shut-off, pressure compensating, purge and vent valves for differential pressure measuring instruments
- Widely used in industries of petroleum, chemical, metallurgical, power, liquid, natural gas, and various conveying pipelines
- Figure 1, 2: MSFZ20, 2-valve manifold

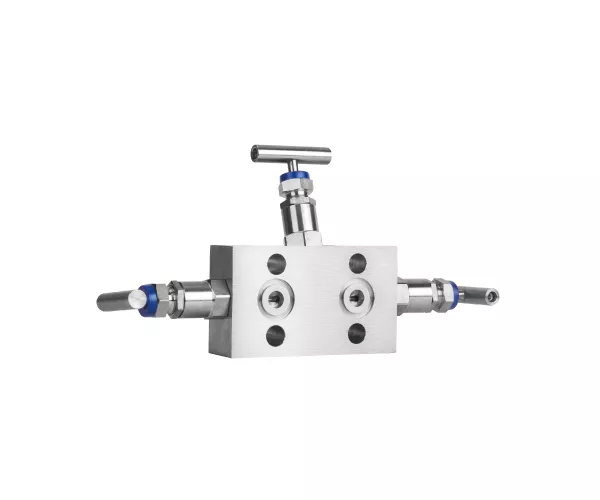

- Figure 3, 4: MSFZ30, 3-valve manifold

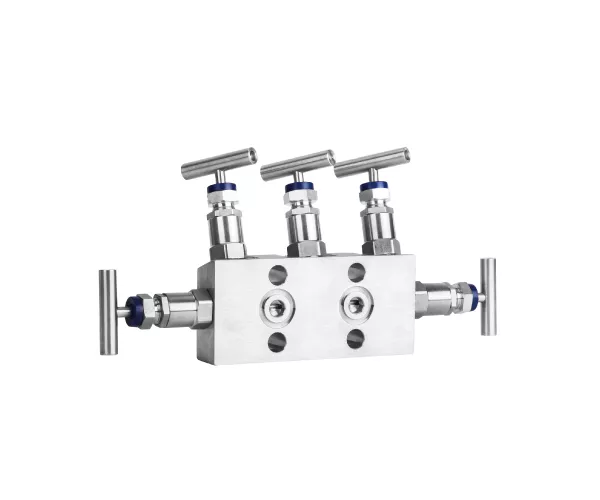

- Figure 5, 6: MSFZ50, 5-valve manifold
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Baca lebih lanjut: 7 langkah untuk memilih tolok tekanan
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Safety shotpin | Adopting stainless steel pin to prevent the valve seat out off the valve body due to vibration |
|---|---|
| Valve body design | Integral structure, firm and reliable |
| Valve seat seal | Stainless steel seal, safe and reliable |
| Valve spool | High-performance duplex stainless steel and spherical positioning function to improve sealing performance and service life of the valve |
| Lubricating grease | Imported grease used between the sealing gasket and adjusting screw to reduce friction and improve sealing performance |
| Bahan | 304 SS, 316 SS, Monel, Hastelloy C |
| Marked cover | Green, red, and blue marks for the pressure-leading valve, balance valve, and draining valve respectively |
| Stuffing box filler | Ptfe |
| Working pressure | 32MPa, 42MPa |
| Working temperature | ≦150℃ |
| Suhu ambien | -30℃ ... +93℃ |
| Komunikasi | Mod RS485 Modbus RTU |
| Kadar Baud | 19200/9600/4800/2400 bps |
| Suhu pembajaan | 100 ppm/℃ (0 ℃ ... 60 ℃) |
| Suhu & kelembapan ambien | 0 ℃ ... 60 ℃/20% ... 90% RH (bukan kondensor) |
