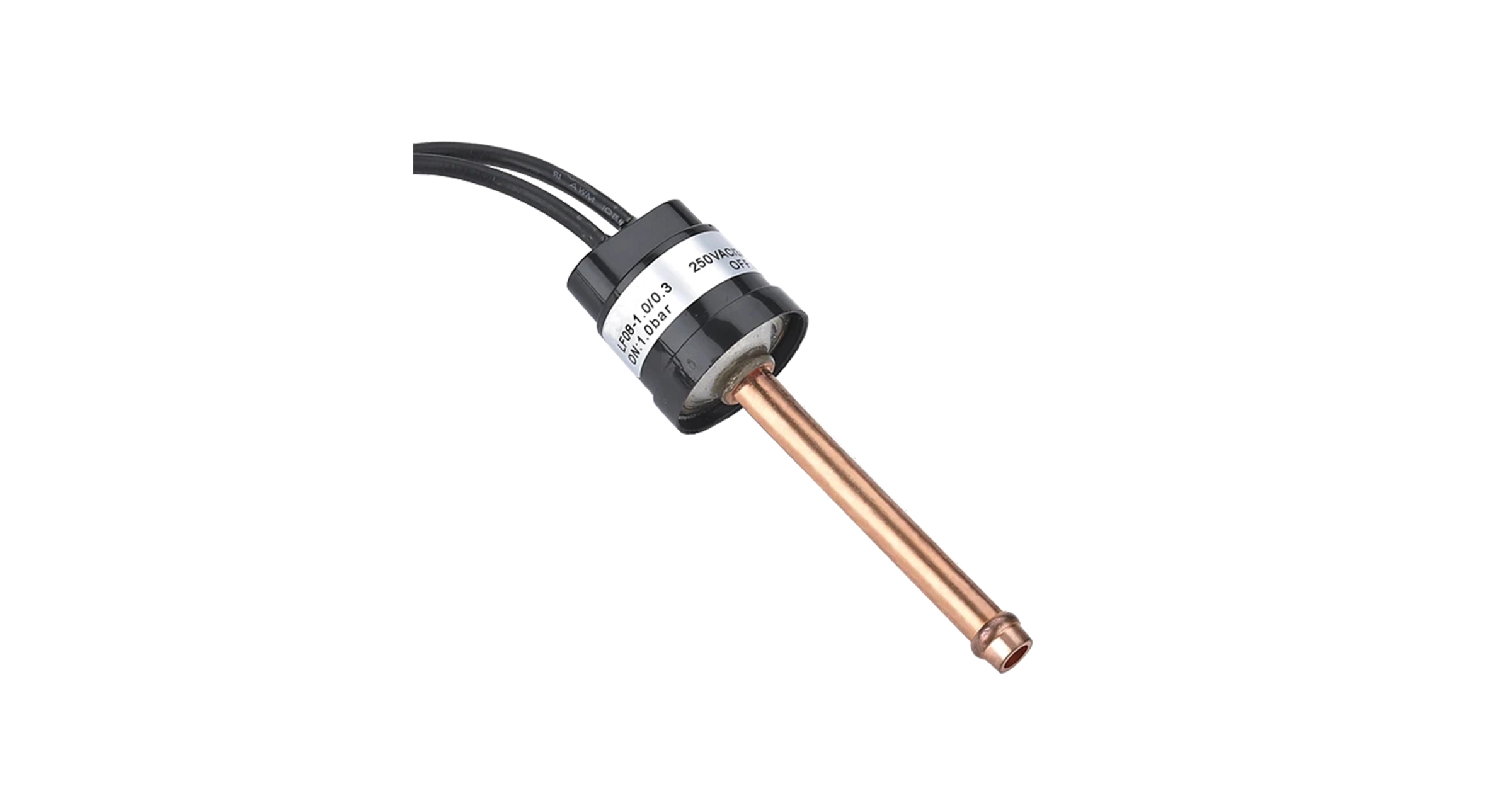

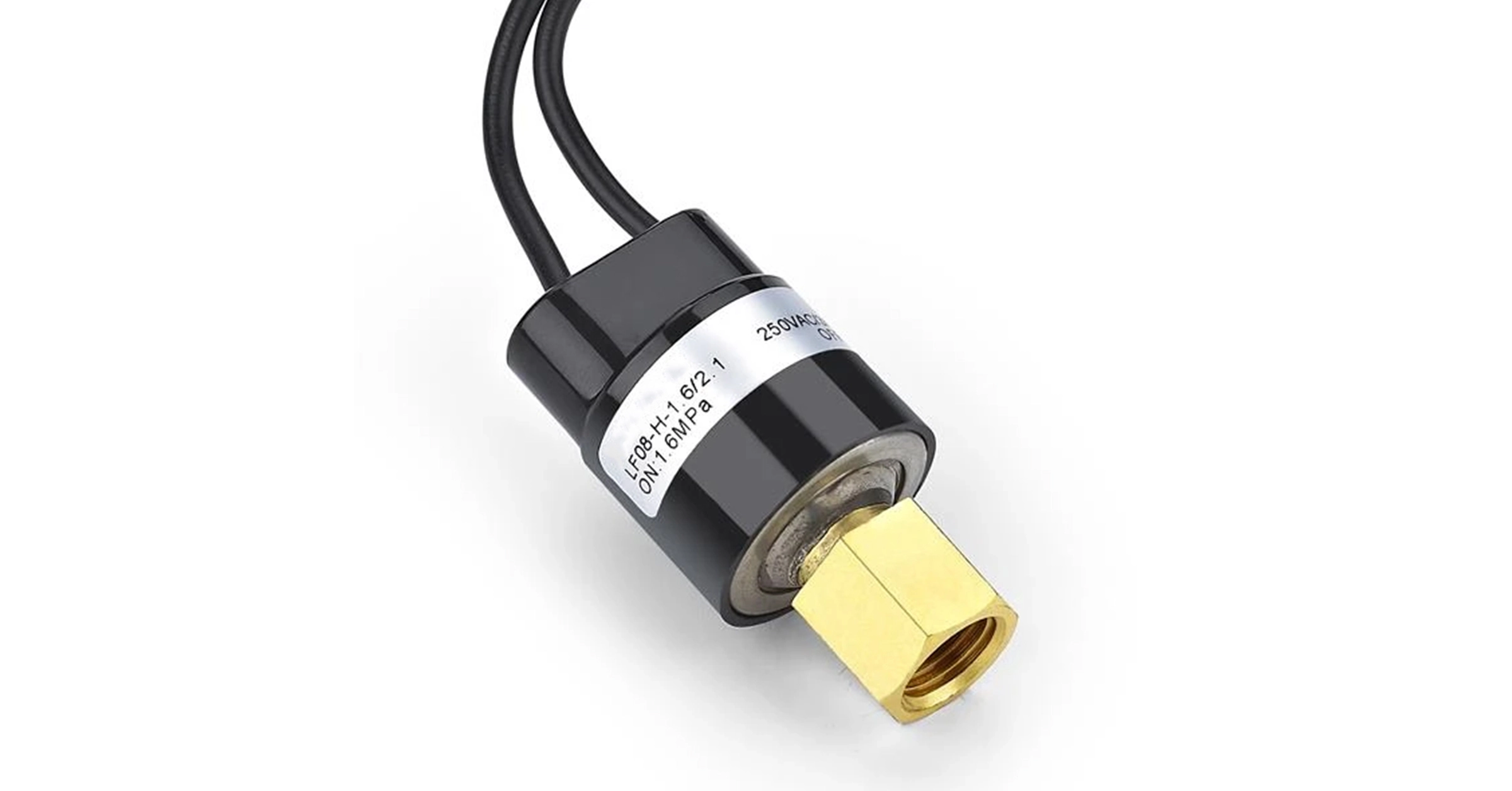

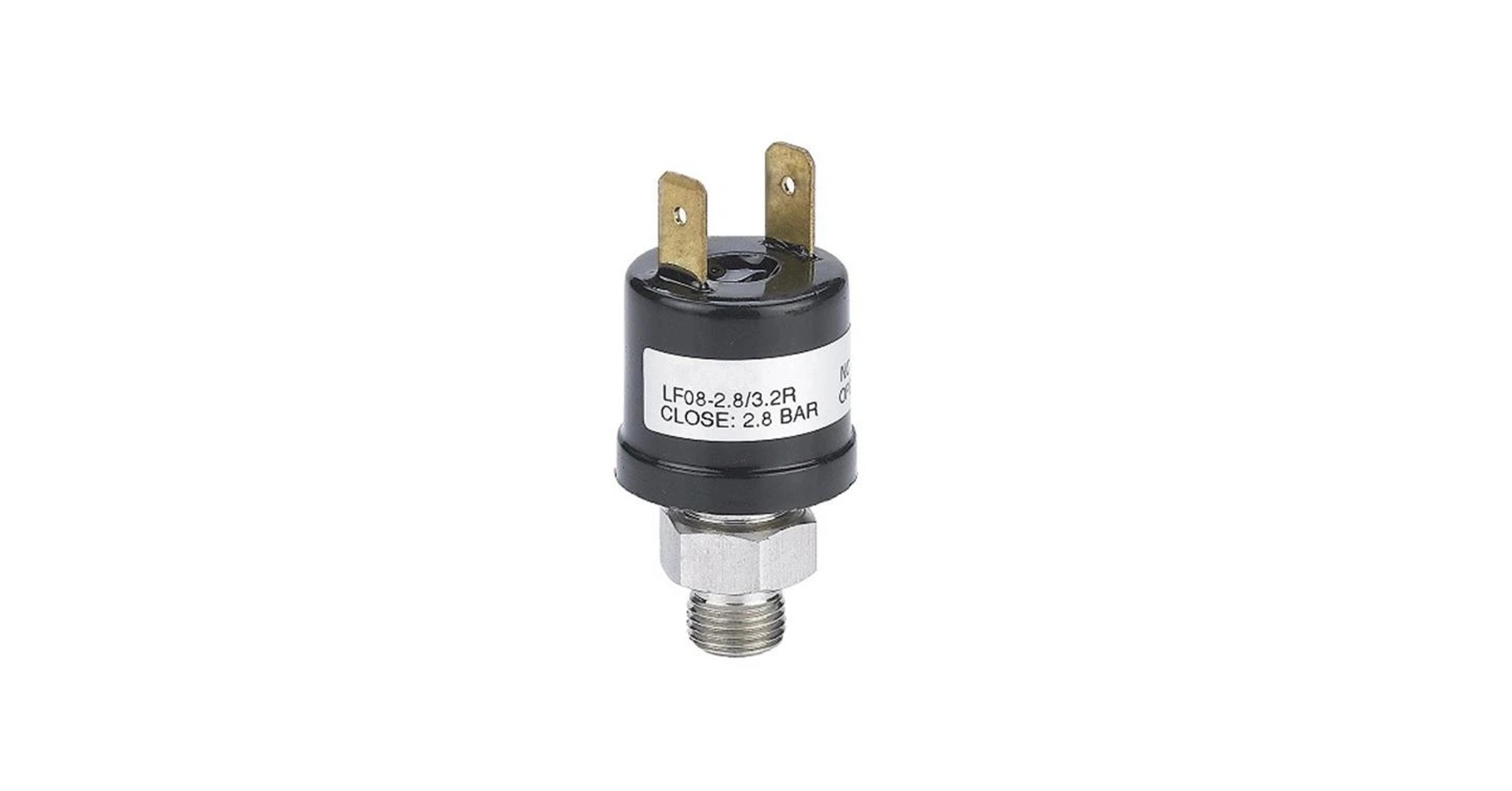

Tolok tekanan kenalan/penggera Penggera, suis tekanan mini
Model: MPS
Penerangan :
- Able to choose Automatic reset or manual reset
- Wide pressure range, apply to multi work situation
- Application to air、water pressure control, Indoor air conditioner system or more...
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Produk akan disesuaikan dengan keperluan anda, jadi imej produk adalah untuk rujukan.
- Baca lebih lanjut: 7 langkah untuk memilih tolok tekanan
Muat turun fail
Spesifikasi produk
左右尚有資訊
Pressure range | 0~45 bar |
---|---|
Overpressure | 5000 psi |
Thread size | 1/8", 1/4" or other can be customized |
Thread type | PT, PF, NPT, UNF or other can be customized |
Thread material | Brass, stainless steel |
Connector | 6.35x4.8、4.8x0.8;cable out |
Switch type | SPST(NO/NC)、SPDT |
Reset pattern | Automatic/manual |
Electronic parameter | 120Vac 6FLA, 40.2LRA; 240Vac 4FLA, 26LRA; 120/240Vac 375VA; 36Vdc 3A |
Connection type | Insert / cable out |
