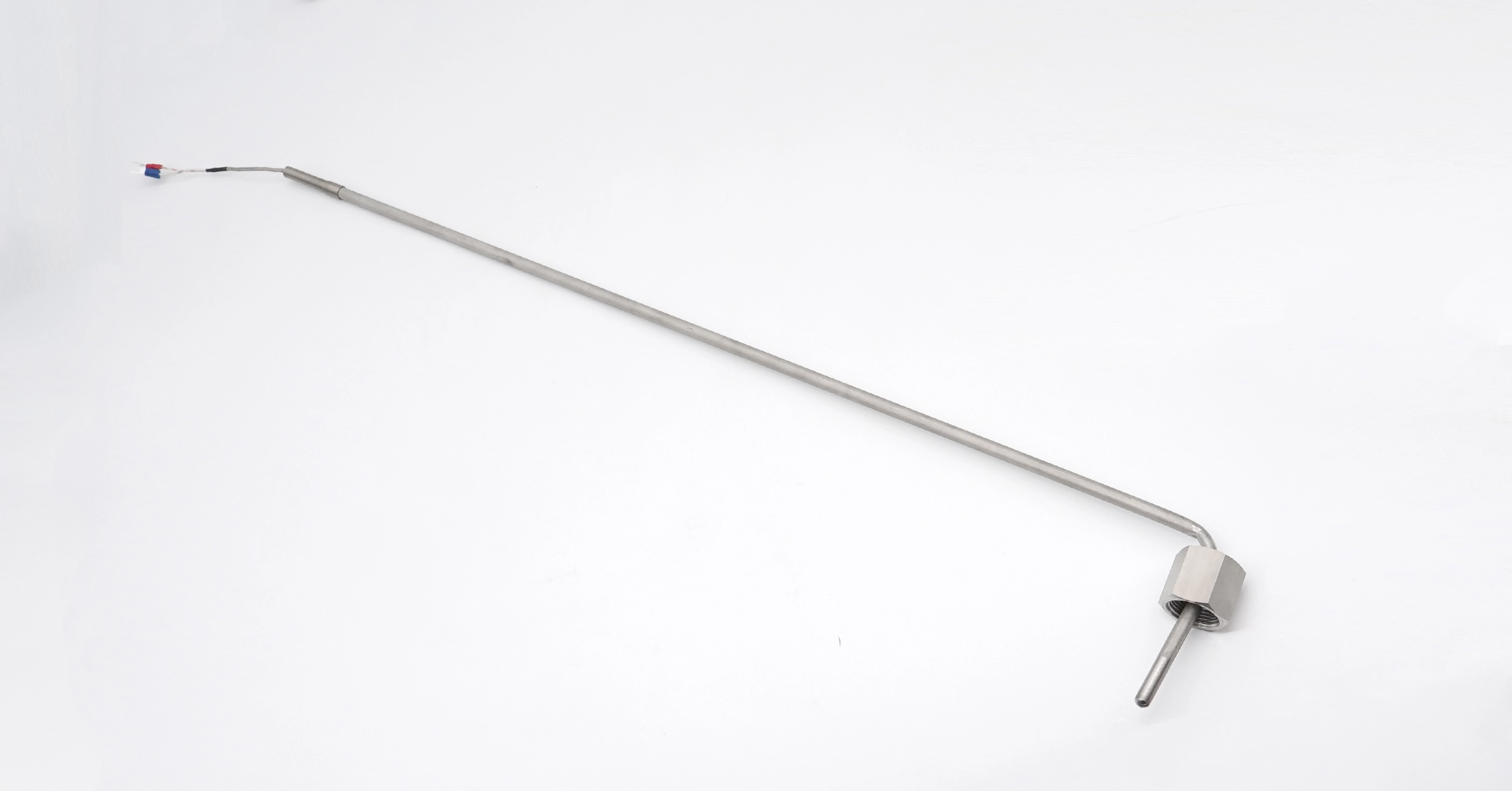

Thermocouple, jenis sarung
Model:301, 302, 303
Penerangan ：
- Sheath thermocouple is used in cement, paper & pulp, oil/gas
- Thermocouples are typically selected because of their low cost, high-temperature limits, wide temperature ranges, and durable nature
- Jaminan Perkhidmatan After-Sales / Waranti Berkualiti / Tinggi / Tinggi Tinggi
- Imej itu adalah untuk rujukan; Produk sebenar akan berdasarkan spesifikasi tersuai anda.
- Read more: How to Distinguish Gauge Pressure and Absolute Pressure?
Muat turun fail
Spesifikasi produk
左右尚有資訊
| Jenis | 301_Lead wire type, 302_Socket type |
|---|---|
| Isyarat output | K type, T type, J type, E type |
| Element/Quantity | Single-element, Dual-element |
| Tube diameter | 1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0D |
| Insertion length | 50~150mm or customize |
| Thread | 1/4"FPT, 3/8" PT, 1/2" PT, 1/8"FPT, 1/4" PT, connection tube or customize |
| Wire length | 1m~4m |
| Wire material | PVC, cable, Teflon, glass fiber |
| Bahan | SUS316、Inconel |
